Vehicle Dynamics Sensor PCB

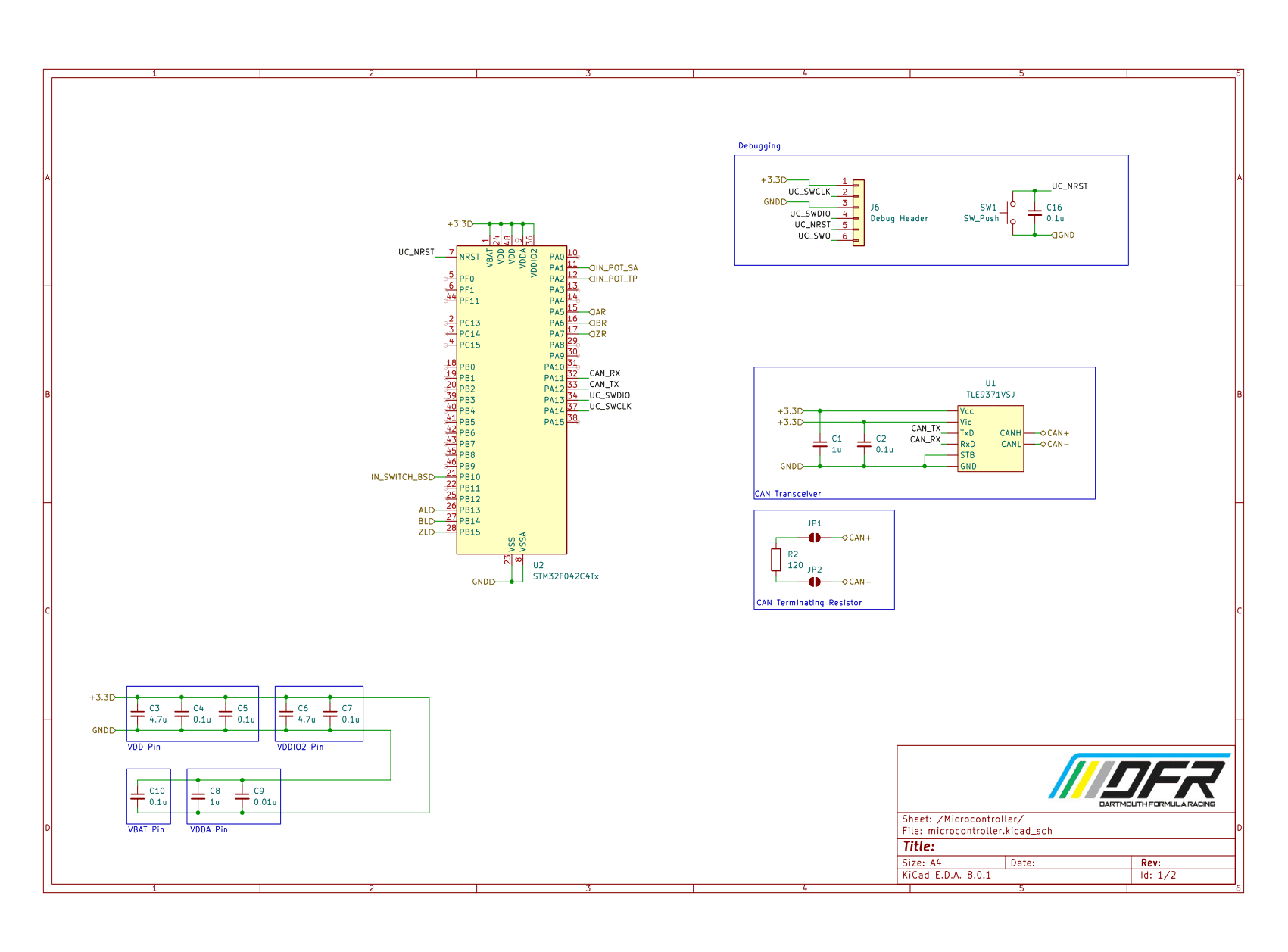

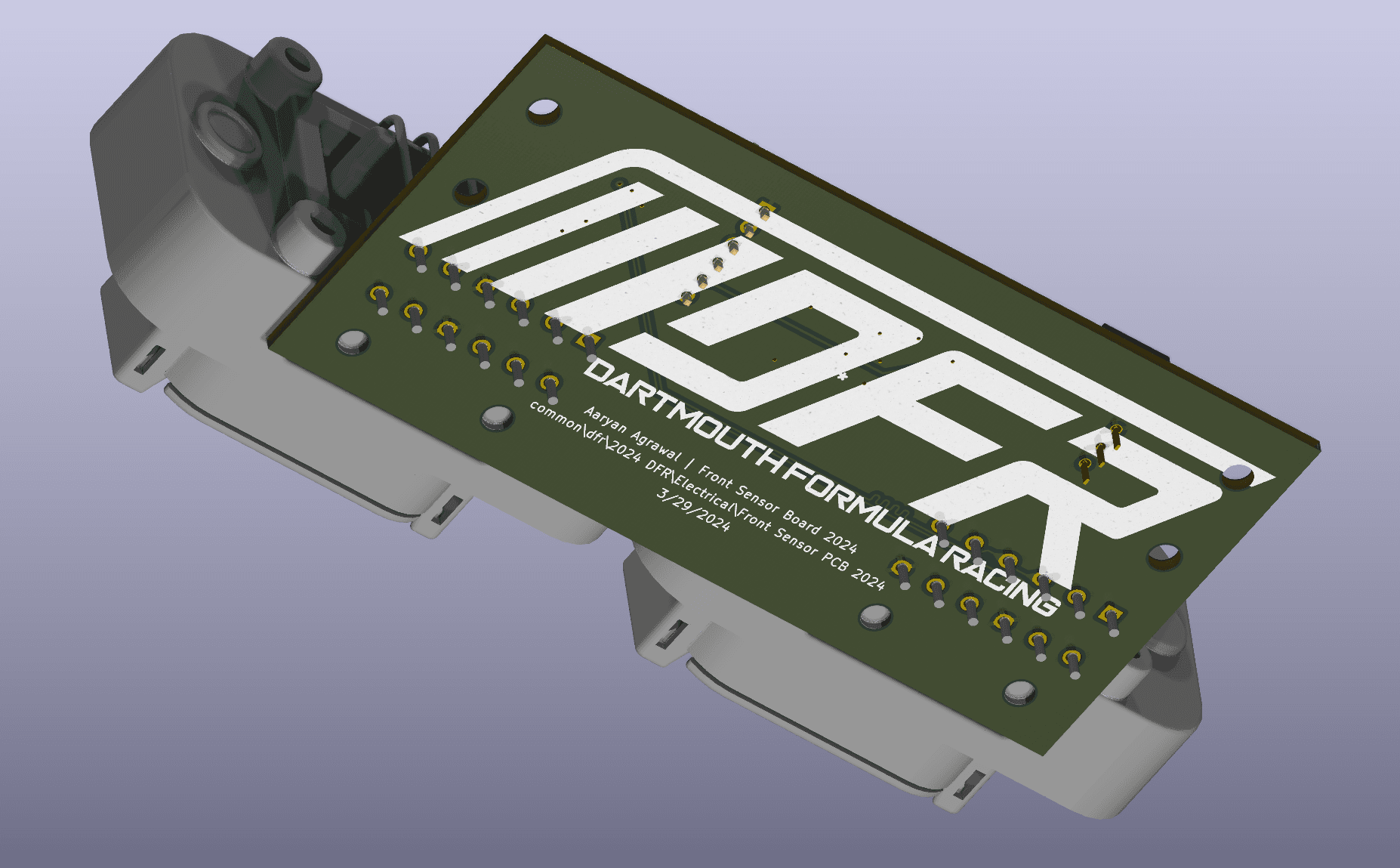

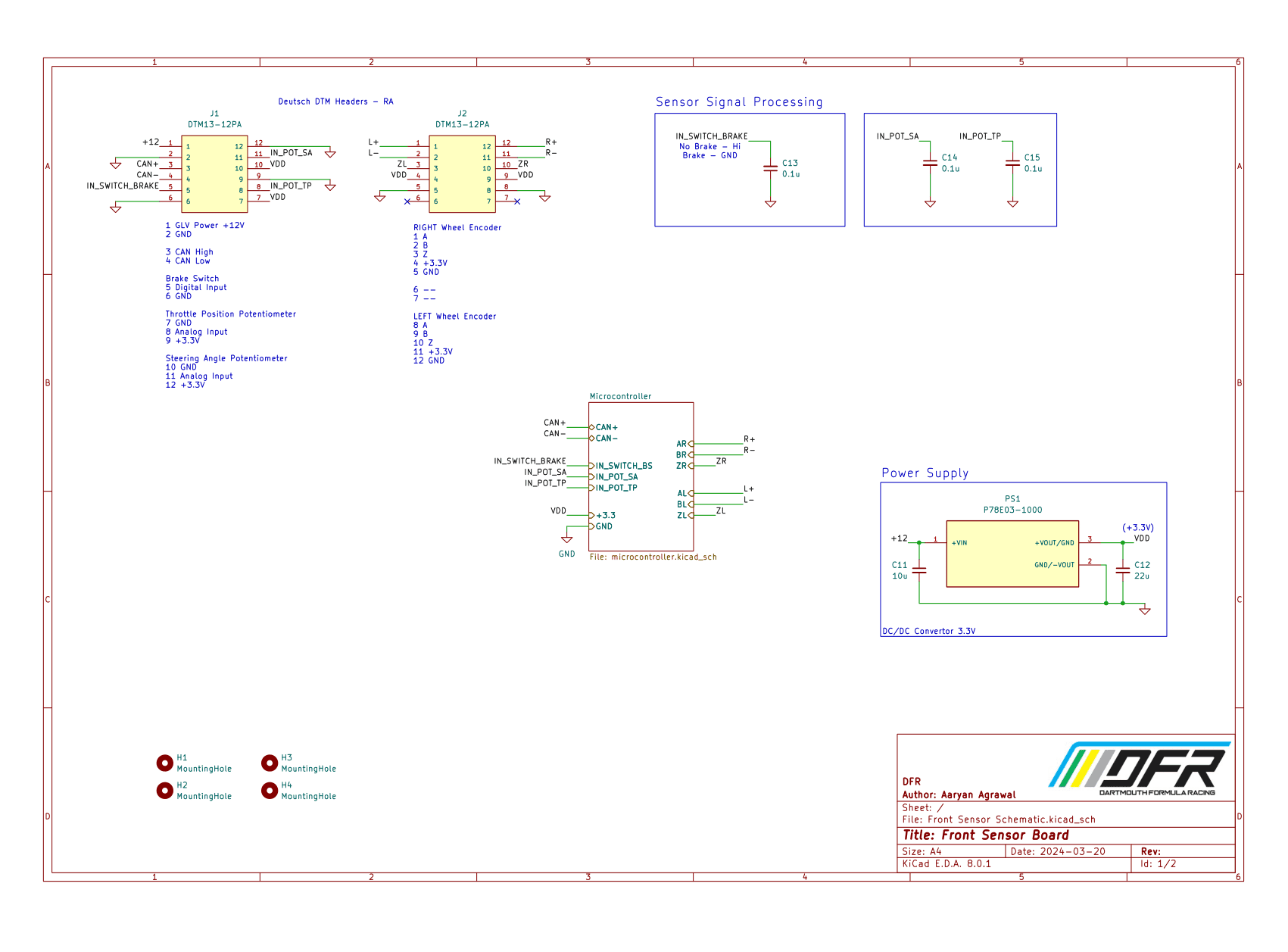

Developed a custom PCB for Dartmouth Formula Racing to collect data from vehicle dynamics and driver input sensors: throttle position, steering angle, wheel speeds and brake pressure. Responsibilities included circuit and PCB layout design, in-house soldering and assembly, bench testing and design validation, and software programming for effective data management and performance optimization. Collected data was converted to usable units and sent via CAN to the Central Vehicle Controller.
