Analog Heartrate Analyzer

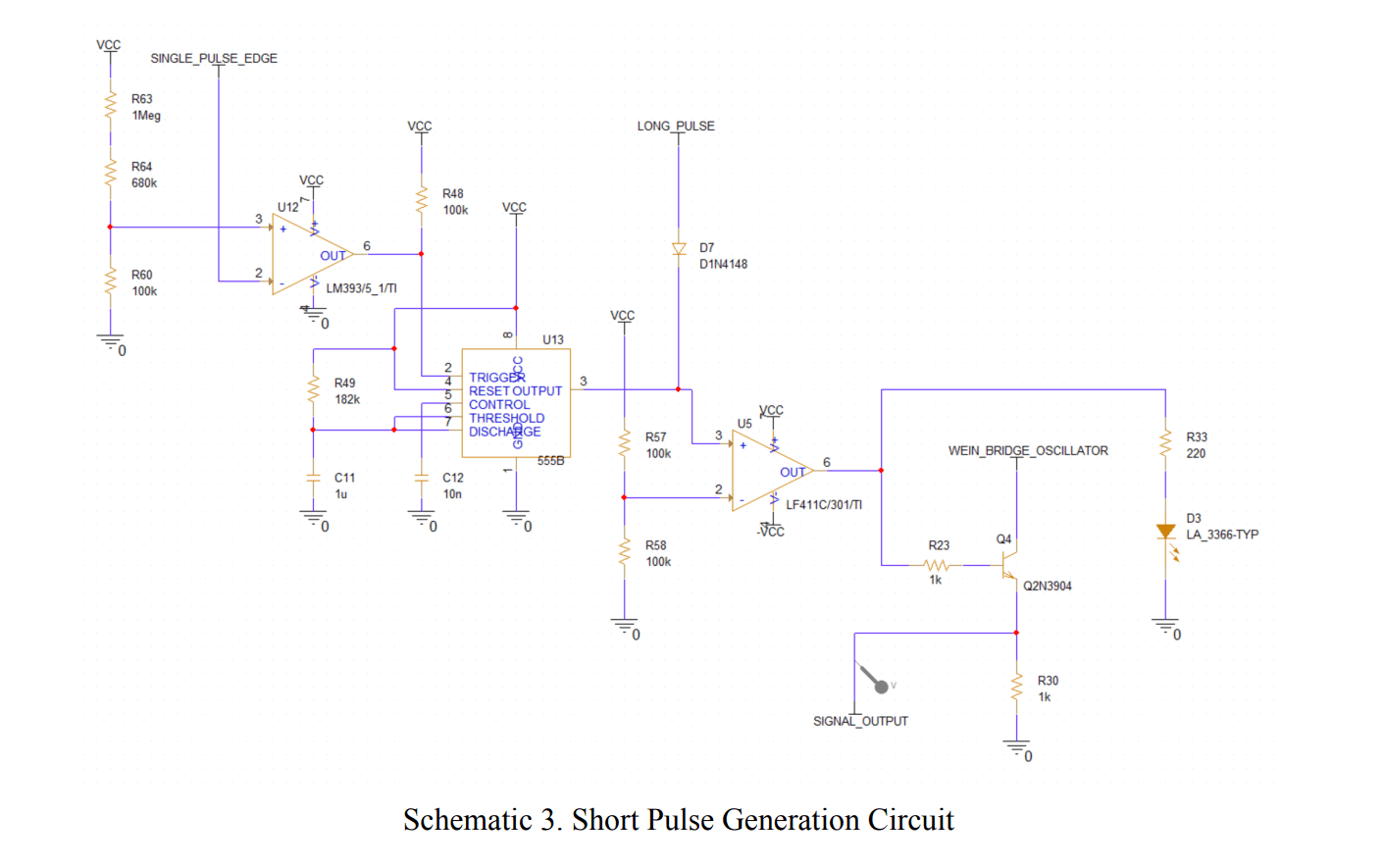

Designed and built an analog heart rate monitor that detects heartbeats using a microphone stethoscope. The device processes the signal to trigger a beep and LED flash in sync with the heartbeat. It differentiates between initial and regular beats using short and long pulses. Powered by a 9V battery, it features signal filtering, amplification, and a tone generator for clear output.
